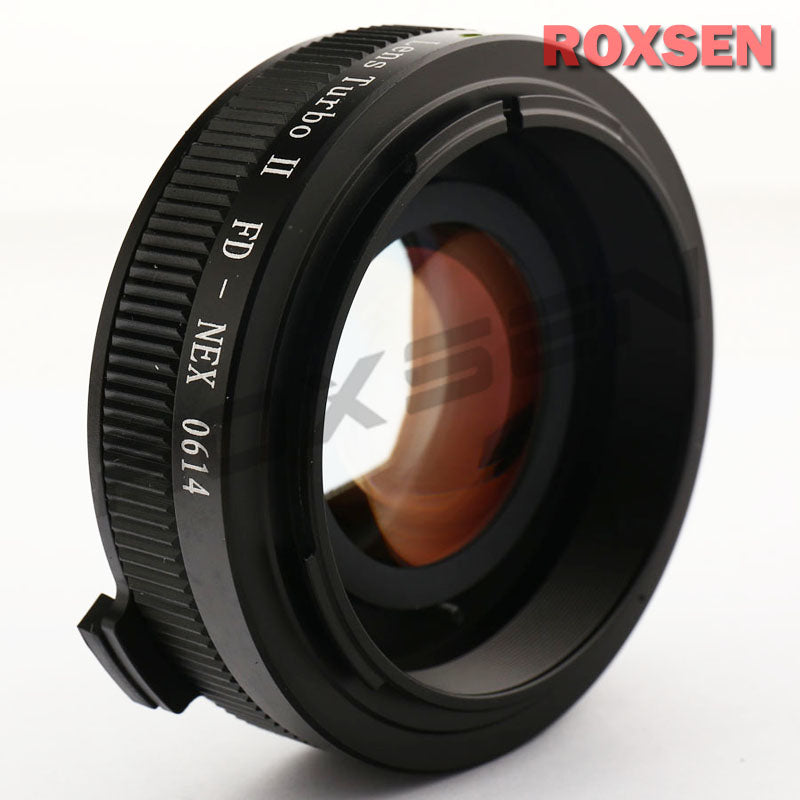

The Canon FD Lens to Sony E-Mount Camera Lens Turbo Adapter Mark II from Mitakon allows Canon FD lenses to be mounted on Sony E-Mount APS-C format cameras, increasing the angle of view by 0.726x and the maximum aperture of the lens by 1 f-stop.
The four optical elements of the Lens Turbo adapter condense light from the Canon FD full frame lens and project it onto the camera’s APS-C sensor allowing the sensor to capture all of the lens’ transmitted light, negating the 1.5x crop factor and effectively producing full-frame coverage on non-full-frame sensors. A corresponding increase in the maximum aperture of 1 f-stop makes the lens more effective in low-light situations.
The Mark II version of the Lens Turbo features an improved design to produce sharper images. Its rectangular rear lens rests closer to the camera’s sensor improving light transmission and an enhanced lens coating minimizes ghosting and flare. One extra-low dispersion (ED) lens element reduces aberrations for better delineated images. The adapter offers a sturdy metal construction and stainless steel mounts, it attaches to both camera and lens with little play and includes a front and rear protective cap. The Lens Turbo is a manual adapter offering no electronic communication between lens and camera.
The Lens Turbo adapters are compatible with APS-C sized sensors. Although they will physically fit the Sony full frame mirrorless cameras, the camera must be set to Crop Mode to fully support the speed booster’s functions.
Cannot be used on Sony E mount full frame camera.
Turn the red point on the adapter to the \Open\ mark.
Install the adapter by match the install white point both on adapter and camera,
Wave the adapter ring lightly to make sure the adapter and camera bayonet is matched as well.
Press the font side of the adapter and turn the red point to \lock\ mark to make the adapter locked on the lens and camera.
For the FD Lens:
First match the red point of both lens and adapter and make the lens and adapter touched tightly.
Then turn the lens to the yellow point to make the bayonet matched as well.
Then turn the lens clockwise until it lock on. Please follow this instruction carefully to make sure the aperture work correctly.
To remove the adapter, turn the red point of adapter to the \Open\ mark,and wave the adapter to remove it.
To remove the FD-Mount lenses, use the same way as it is mounted on a camera body.
Do not remove the adapter by press the release button on the camera, this may cause damage to the lens and camera.We designed a stopper by the release button to avoid mistaken press.
